FINAL

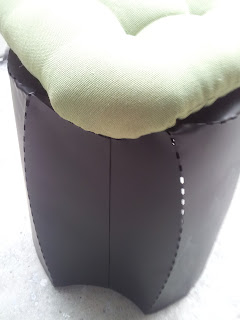

after matt black paint was done, i put on a green cushion for the comfortable  effect

shows how stacking is possible

complete and done

almost the end

making safety folds

once all put together by bending the Perforated Folds, grinding down the sharp corner for a non sharp edge

over all shape once done.

size of a person next to it

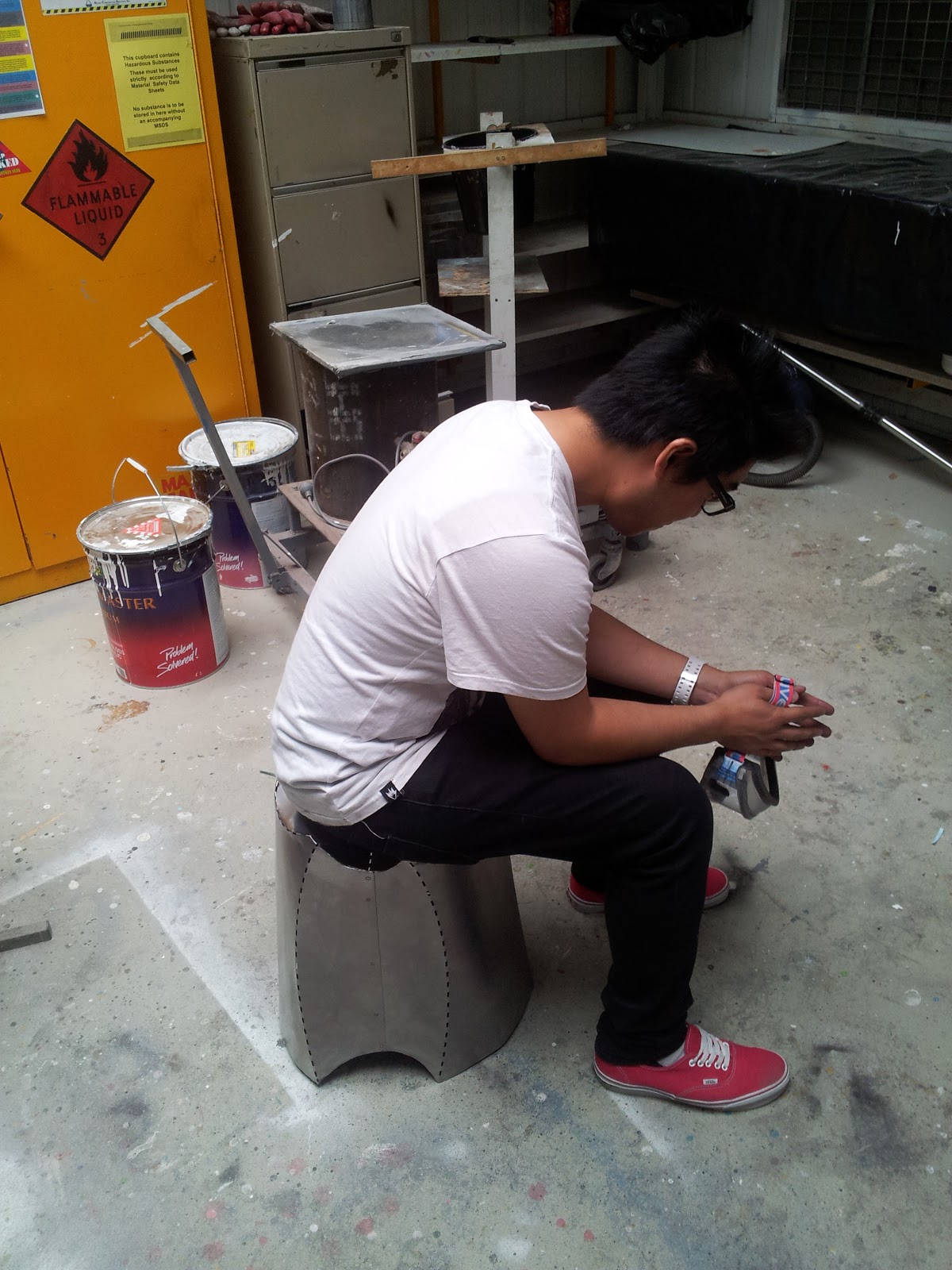

sitting down

using etch primer spray can for a matt black look

in the booth for spraying

testing it out

feet up

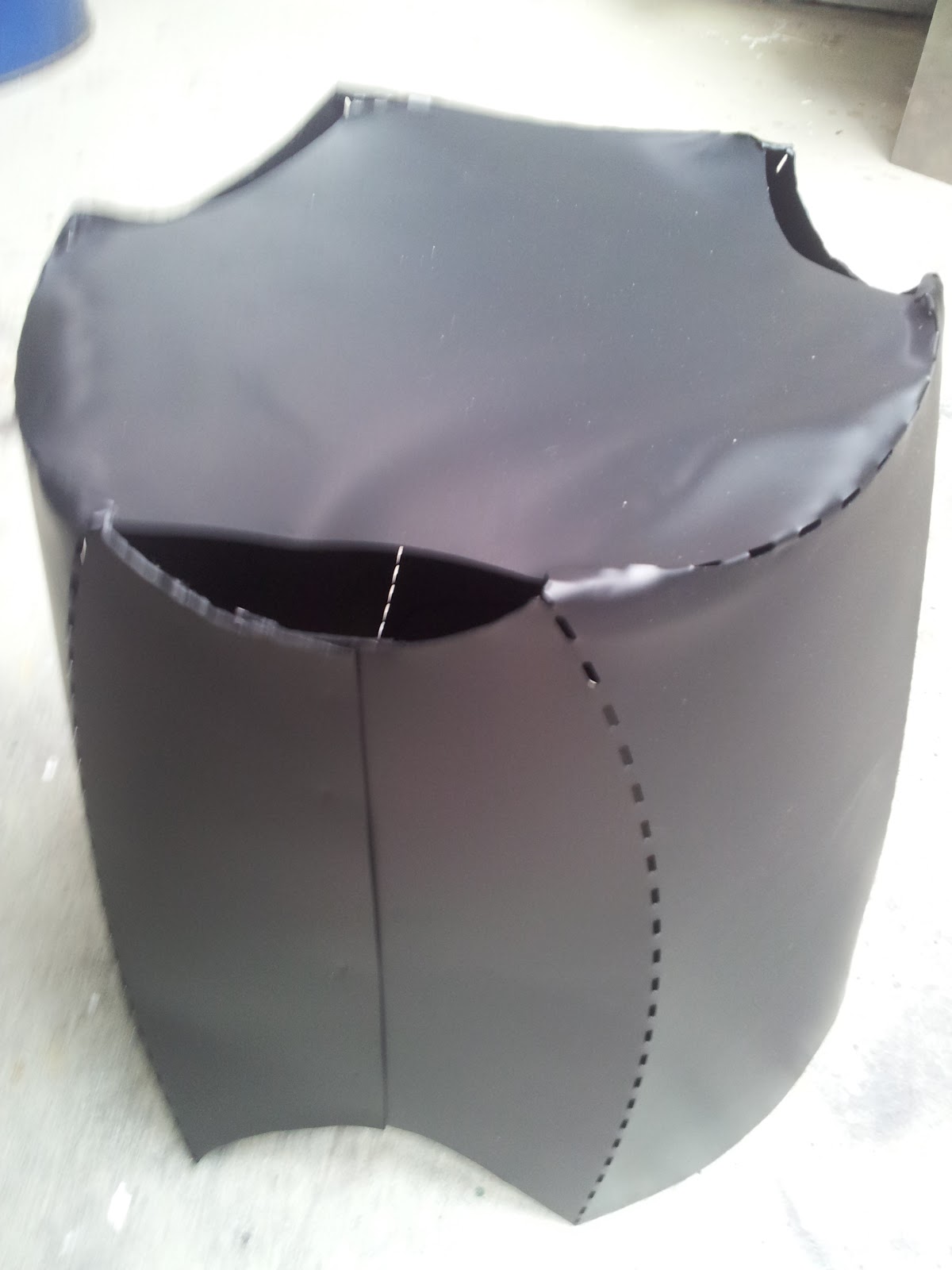

overall finish

renders

Construction drawings

FINAL DESIGN GEN 5

Gen 5 - very similar to GEN 4 , i ve added more height and refined the curves

overall very happy with it and await for the sheet metal to be completed - sent out the files with another class in week 9

The plans - top base will be dimension of 350 mm

fold the safety tab

this part will be welded together

hopefully in the sheet metal - this section will curve in to help support the top base

the insides - enough room for stacking to happen

good example of the perforated folds

the design flat

the other side

insides where it will be spot welded

bottom view

top
